MODULE
V-Series
Video wall display has the best picture quality and clarity. It can be used efficiently in a variety of Control room, meeting room, broadcasting and so on. It provides the optimal screen for customer use.
Specifications | ||||
---|---|---|---|---|
P0.9 | P1.2 | P1.48 | P1.9 | |
Pixel pitch(mm) | 0.9 | 1.23 | 1.48 | 1.98 |
LED Type | SMD | |||
Brightness(cd/m²) | 800 | 1,200 | ||
Refresh Rate(Hz) | 1,920/3,840 | |||
Power Consumption (Max/Ave)(W/m²) |
760/263 | 680/170 | 470/115 | 430/105 |
Panel Resolution | 360x405 | 384x432 | 320x360 | 240x270 |
Panel Size(mm) | 325x365x88 | 476x535x78 | ||
Weight (kg/panel) | 4.5 | 9 | ||
IP level | IP30 | |||
Gray Scale(Bit) | 16 | |||
Maintenance | Front/Rear |
- Life time 100,000 hours, Screen maintain High quality and clarity in long term use.
- Create a bezel-free, uniform screen with a single integrated screen.
- High-light displayprovides a clear screen even in a bright indoor environment
- Simple and quick to adjust the color and brightness of the entire screen.
- Noise free by not using fans.
- Free screen configuration with screen segmentation.
- KC certification, Signal back-up(redundancy), Power back-up support that continuous operation in case of an abnormality.
Free screen configuration and installation
Depends on customer request, various screen size can be available, FHD/4K/8K screen also.
Models | ||||||
---|---|---|---|---|---|---|
6x3 panels | 8x4 panels | 10x5 panels | 12x6 panels | 16x8 panels | 20x10 panels | |
2.85x1.6m | 3.8x2.14m | 4.76x2.67m | 5.7x3.2m | 7.6x4.28m | 9.52x5.35m | |
P1.2 | 2,304x1,296 | 3,072x1,728 | 3,840x2,160(4K) | 4,608x2,592 | 6,144x3,456 | 7,680x4,320(8K) |
P1.4 | 1,920x1,080(FHD) | 2,560x1,440 | 3,200x1,800 | 3,840x2,160(4K) | 5,120x2,880 | 6,400x3,600 |
P1.9 | 1,440x810 | 1,920x1,080(FHD) | 2,400x1,350 | 2,880x1,620 | 3,840x2,160(4K) | 4,800x2,700 |
Seamless screen border and spotless clean
screen
The combination of aluminum die-casting cabinet and rear bolt hole module adjustment provide the best screen quality by minimizing gap between modules and cabinets.
![](/eng/img/product/eng_v_img01.png)
High definition LED display
The use of selected led chip and high color bit control provide the best high definition screens in any environment.
![](/eng/img/product/eng_v_img02.png)
Ultra high speed screen display
High speed screen displays above 1920hz ~ 3840 hz per second provide the best screen quality without any residuals or flickers.
![](/eng/img/product/eng_v_img03.png)
Best operational reliability
Controller redundancy, signal back-up redundancy and power back-up provide 365 days of non-disruptive operation.
![](/eng/img/product/eng_v_img04.jpg)
signal Automatically change the
back-up signal when the main signal is blocked. Backup
signal LED Screen

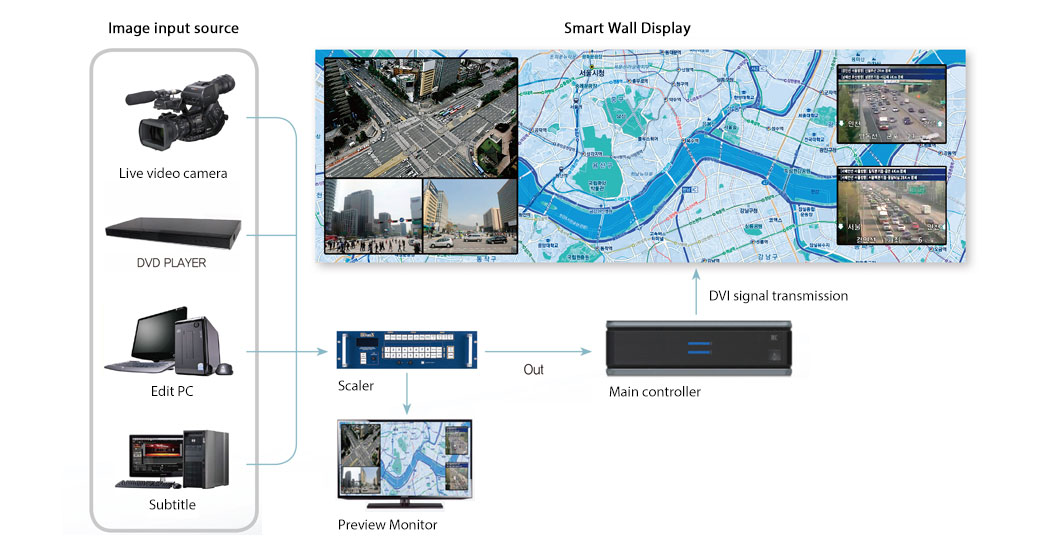

System diagram
![](/eng/img/product/eng_v_img05.jpg)
