MODULE
Film Transparent series
- Transparent LED screens, which embed LEDs into a transparent film, can be attached directly to glass and installed anywhere.
- Unlike traditional LED displays, they blend harmoniously with glass, enhancing transparency and delivering a unique visual experience.
| Specifications | ||||||
|---|---|---|---|---|---|---|
| P3.9 | P6 | P8 | P10 | P15 | P20 | |
| pitch | 3.9 | 6 | 8 | 10 | 15 | 20 |
| LED Type | Mini LED chip (R,G,B) | |||||
| Module size (mm) | 1000 x 250 | 816 x 384 | 1000 x 448 | 1000 x 460 | 1005 x 450 | 1000 x 440 |
| Module resolution | 256 x 64 | 136 x 64 | 125 x 56 | 100 x 46 | 67 x 30 | 22 x 50 |
| Thickness | 1~3mm | |||||
| weight (kg/sqm) | 6 | |||||
| Transparency | >80% | >90% | >90% | >90% | >95% | >95% |
| Voltage | 100~240 | |||||
| Brightness | 4000 | 4500 | ||||
| viewing angle | 150/150 | |||||
| Grayscale (bit) | 14~16 | |||||
| Refresh rate | 3840 | |||||
| Color temperature | 2000~10000 | |||||
- Easy Installation: Simply attach to glass-no need for complex structural frameworks.

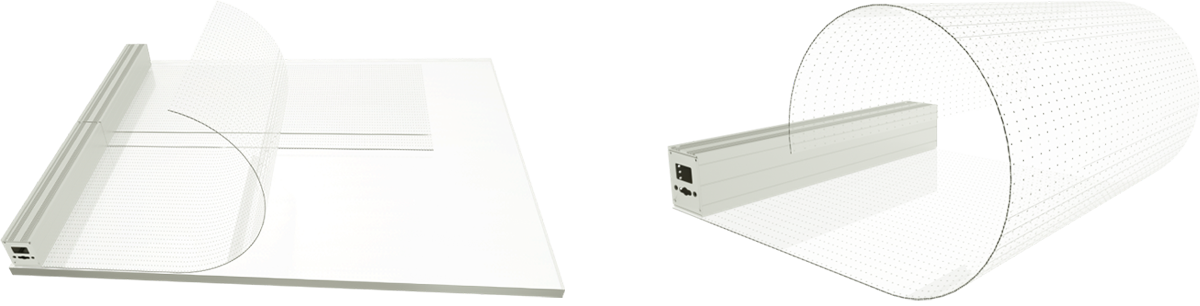

- Customizable: The transparent film screen can bend smoothly and be cut to fit the specific dimensions of the on-site glass.
- High Transparency: Its high light transmittance ensures no interference with indoor or outdoor lighting, preserving the original design of the glass.
Installation reference

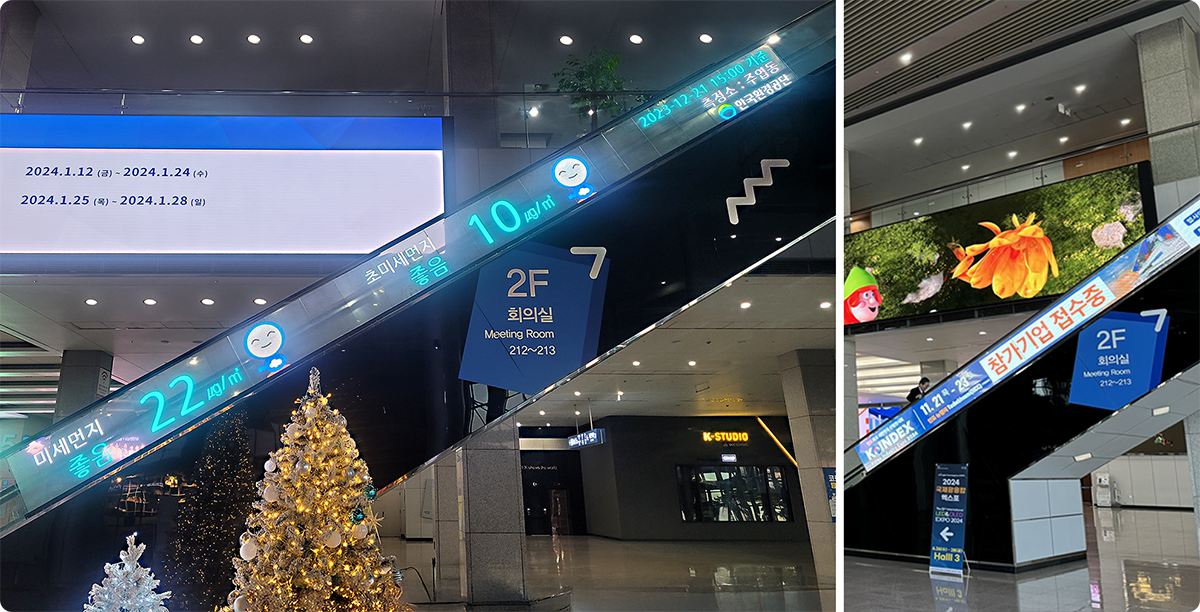

Escalator Film-Type Transparent LED Display at KINTEX Exhibition Hall 1
