MODULE

Smart watch

The smart watch quickly and accurately displays the current time and public information, received from the building's master clock system or operating PC, in various designs. This ensures accurate and unified standard time for visitors and on-site staff.

Specifications
Round
Diameter (mm) 600 800
Depth 70
Pixel Pitch (mm) 2.5mm
Colors 1.67billon
Brightness >800cd/m²
Power (Max/Ave) 230w 360w
weight (kg/pc) 8.5kg 13.2kg
communication TCP/IP
Source compatibility AVI, DPI, HDMI, SVI, S-VIDEO, DCtec
Gray Scale (Bit) ≥ 16bits / 4096 level
Refresh rate ≥ 3840Hz
IP rating (Front/Rear) IP31 / IP30
Serviceability Front
Cabinet material Aluminum
Power supply YY with CE

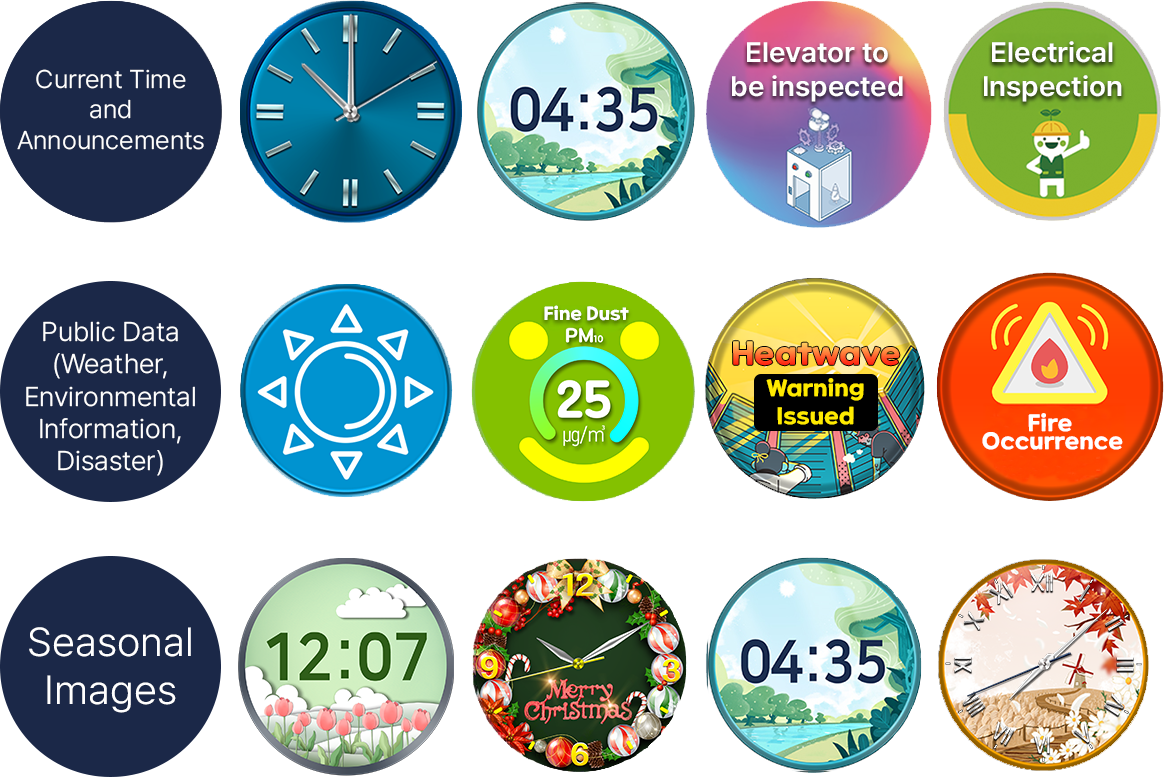

Versatile Information Display Applications

Provides accurate current time display and various information, while visually delivering disaster alerts-such as fire, earthquake, or flood-through clear, graphical imagery.

System Features

1. System stability

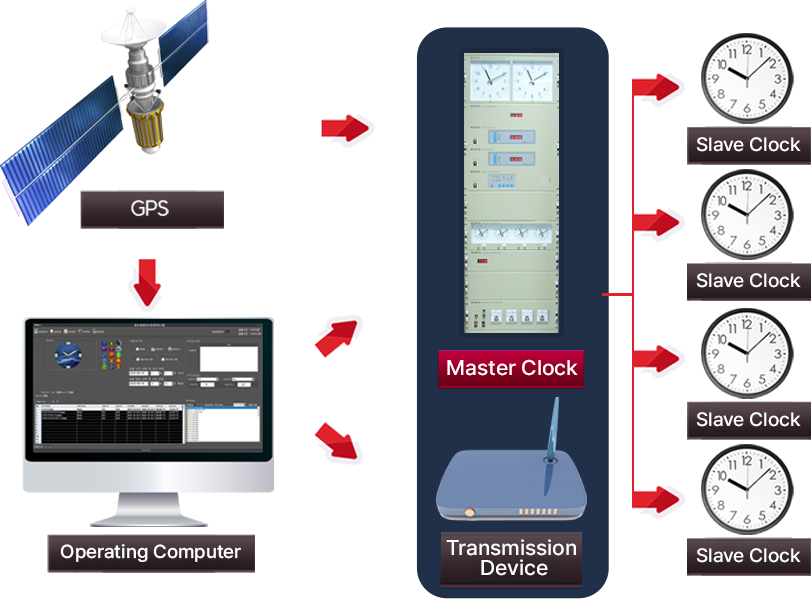

1-1 System redundancy

Utilizes a GPS receiver as a reference signal for master clock time correction, and, in case of a failure, draws the reference time from the operating computer ensuring accurate time display at all times.

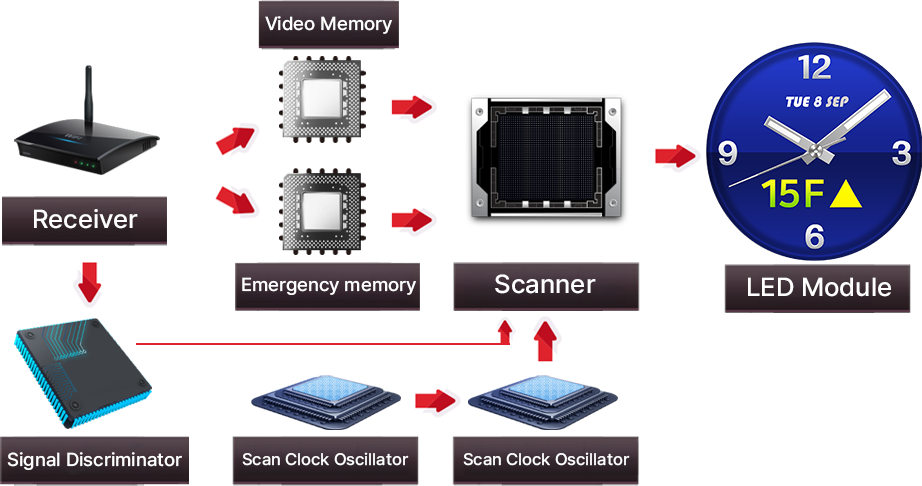

1-2 Error Detection & Built-in Emergency Memory

In case of a master clock or operating computer failure, the system detects the error and the clock independently displays its preset current time.

2. Operating program

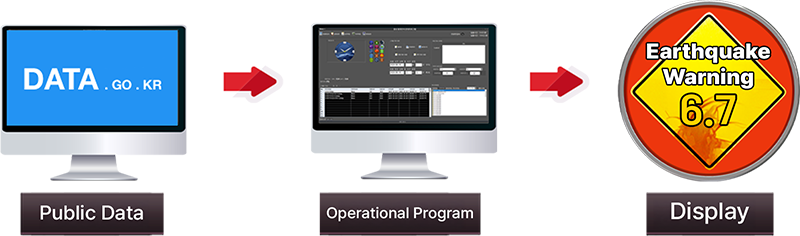

2-1Integration with Alert Systems Using Government Public Data

Employs proprietary software integrated with government public data, including fire and earthquake alerts, to deliver distinctive, customized content.

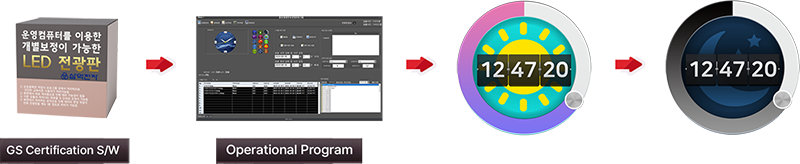

2-2GS certification operation program

Protects specific screen areas from wear and minimizes nighttime glare for users by enabling flexible scheduling and screen color mode adjustments.

Integration with Existing Systems

Compatible with Samik Electronics' existing electric clock systems, enabling expansion through additional installations or new hybrid setups.

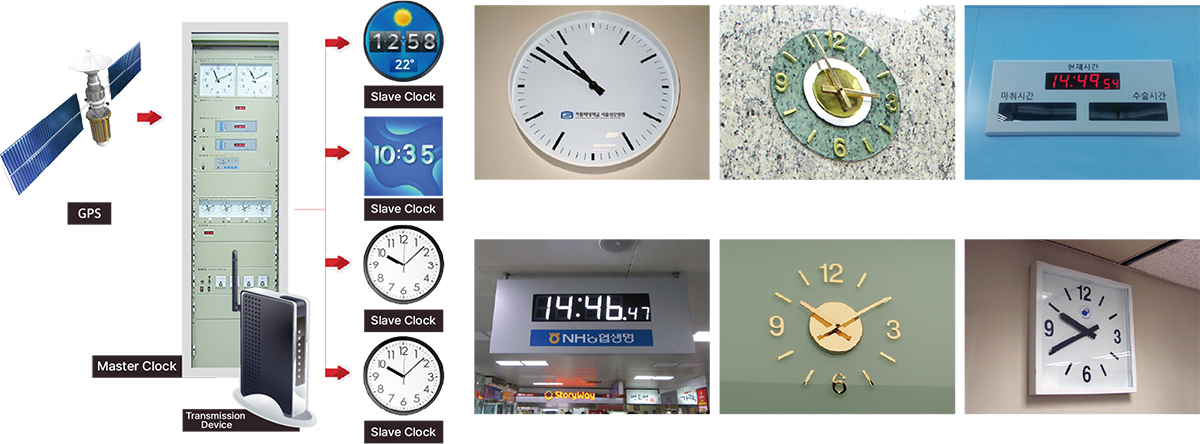

Installation reference
